AndiScan A3 is a third generation of an advanced ballistic velocity Doppler radar for measuring muzzle velocity of projectiles. It operates in 24GHz frequency band. It is a highly integrated and extremely small form-factor device that may be used on a tripod, directly mounted on the rifle, or as an embedded module in more complex measurement instruments. A direct rifle mounting frees the user from a complicated setup alignment and it also allows to perform measurements under dynamic conditions.
Latest updates
- (7/2024) AndiScan A3 – product announcement
- (8/2024) – first small production batch available
- (11/2024) – standard production running
A3 Features
- smallest form factor on the market
- dimensions: 50 x 50 x 25 mm (2.0 x 2.0 x 1.0 in)
- weight (w/o mount adapters): 96 g (3.4 oz)
- dust and rain resistant
- metallic case
- long lasting battery
- internal LiPo battery operation time: 6 hours (3 hours in Armed state)
- external power: USB-C (can be charged during operation)
- precise Doppler radar measurement
- radar operating frequency: 24.150-24.220 GHz
- velocity measurement range: High 484 – 1502 mps, Wide 242 – 1308 mps, Mid 30 – 303 mps, Low 1.0 – 121 mps
- units of measurement: mps, fps, kph, mph
- measures true V0
- measurement precision (99% confidence): 0.16 mps (H/W range, SNR= 30dB)
- minimum time between triggered measurements: approx. 1 s
- versatile trigger options – direct signal detection, acoustic, external
- excellent separation of neighboring shooters: 1 meter side separation is safe (no false readings)
- huge internal storage capacity
- internal storage capacity: 1000 files, each file 100 shots
- 8 predefined and fully user-editable configuration profiles
- full remote control over universal Remote Shell App
- external remote control, live view display, file management
- over BLE and USB with universal Remote Shell Application (iOS, Android, Mac, Windows)

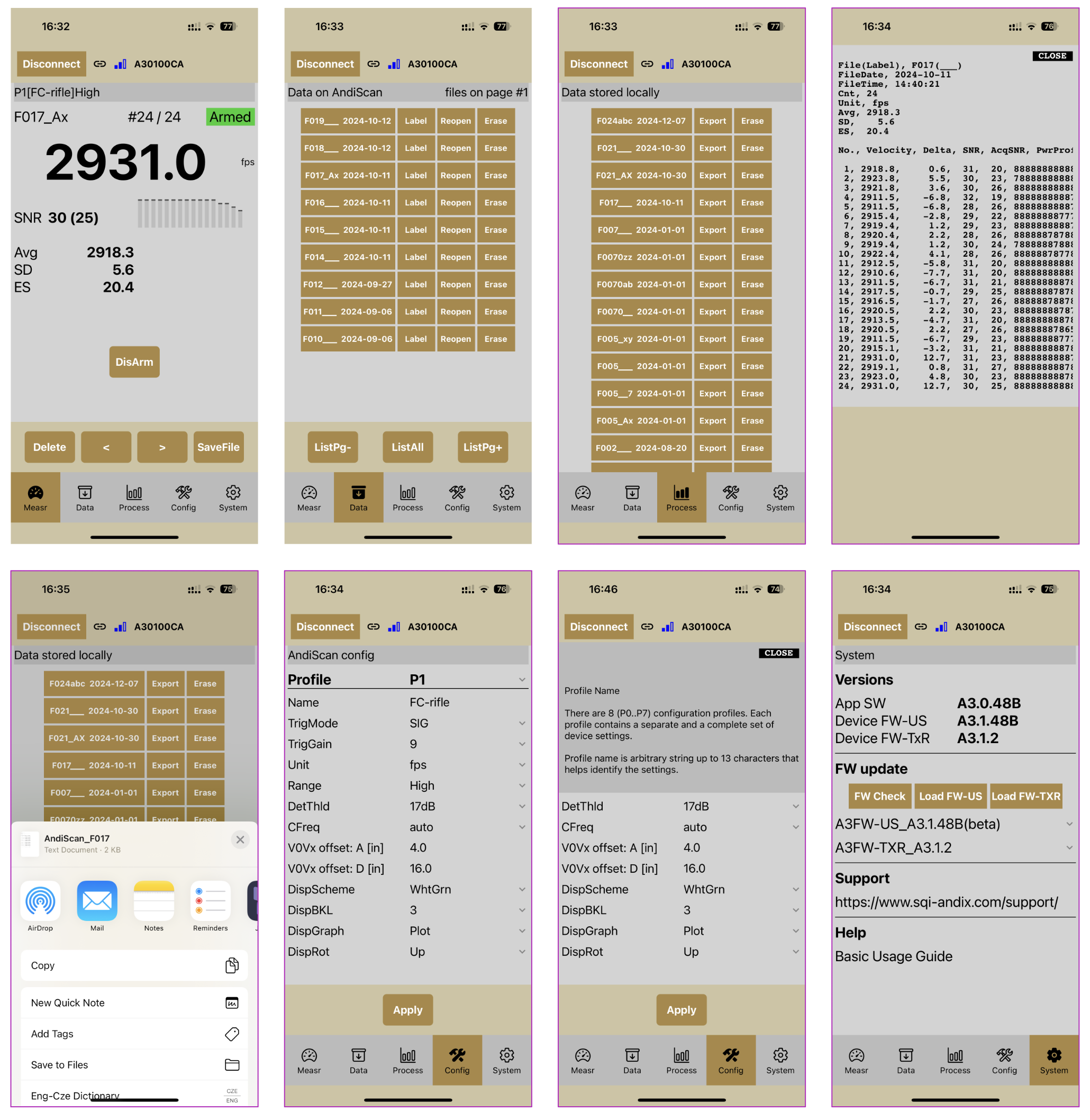

- native iOS/android App
- external remote control, live view display, file management, configuration
- super-easy data export
- over-the-air FW upgrade
Support and Resources
- User Guides
- Firmware updates
- Remote Shell webApp
- Native iOS/android App
- If you experience any technical difficulties or if you need a technical help contact us at support@sqi-andix.com.
